Parallel Drill Bit

Description

Application domain: for implantology

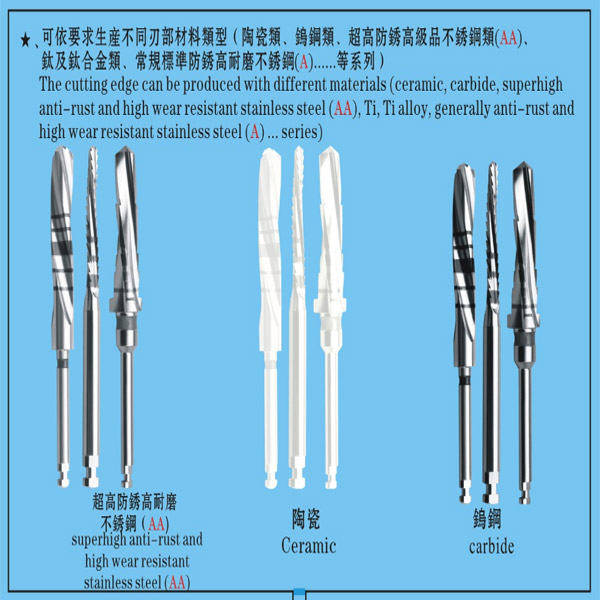

Material: Ultra high rust-proof and high wear-resistant stainless steel,ceramic
LZQ is an OEM factory that produces a variety of dental implant drills, for example, Lance Drill  P172, Side Cutting Drill  P150, Screwdriver  P79, Drill Key  P47, Drill Extension  P44, etc. We can also produce the complete surgical kits for customers.

Product Details

Chip collector, Bone deposition drill and reamer series commonly used for skeletal fragment collection and bone powder accumulation to the crest as reference. Parallel drill bit from LZQ is high-performance.

Parallel Drill bit P97

Regular stock material: Ultra-high anti-rust & high wear-resistant stainless steel (AA)(HRC54°±2°Section)
Deep groove to top, chip accumulation to the crest. (It can be with black, yellow, full matt, full shiny, partial matt + partial shiny and other surface treatment)

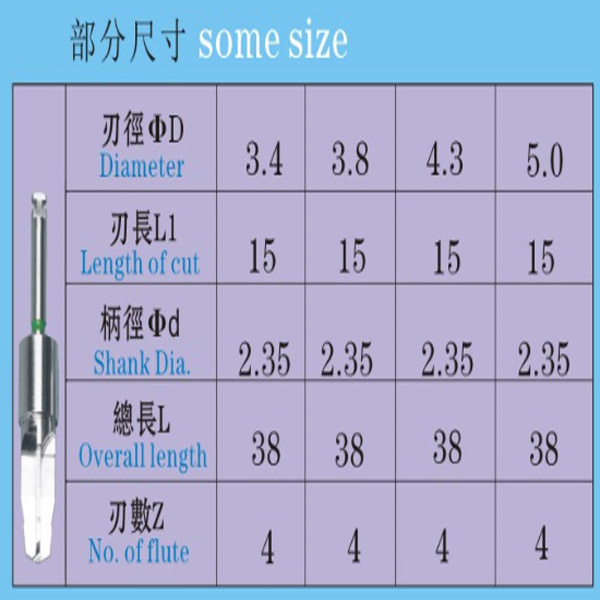

① 2-flute commonly-used specification: Any size series of edge diameter between Φ0.80mm~Φ5.50mm
3-flute commonly-used specification: Any size series of edge diameter betweenΦ0.80mm~Φ7.95mm
4-flute commonly-used specification: Any size series of edge diameter between Φ2.0mm~Φ7.95mm
② The series with regular number of flutes, but cutting length up to 55mm and total length up to 65mm, processed with any step, taper angle, shape, sharpness requirements.
③The conventional 10°~12°helical edge can be sharp, burnishing, passivated, or front-sharp but rear-blunt.

Parallel Drill bit P97

Multi-picture display

  • Parallel Drill Bit
  • Parallel Drill Bit
  • Parallel Drill Bit
